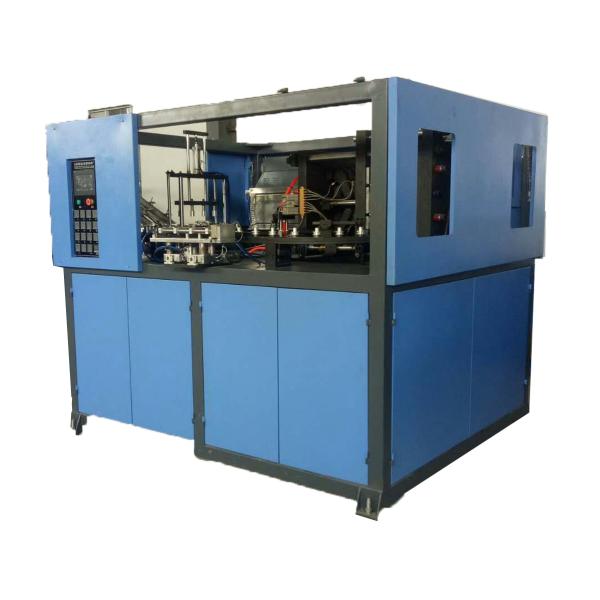

Full automatic 4 cavity bottle blowing machine 500ml to 2 liter

Brand Name : NC

Place of Origin : SHANGHAI

MOQ : 1

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Condition : New

Application : Bottle,PET

Voltage : 380V/50HZ,380v,3phase 380V/220V/415V 50HZ,120KW,220V

Automatic : Yes

Warranty : 1 Year

After-sales service provided : Online support,Video technical support

Plastic processed : PET,PP

Product name : Bottle blowing machine,Automatic PET bottle blowing machine for water filling plant

Cavity : 4 cavity

Capacity : 4000-4500

Material : PET

Contact Now

PRODUCT OVERVIEW

Full automatic 4 cavity bottle blowing machine 500ml to 2 liter

Specially designed for energy-saving purpose.Mechanical unit is compact and sound.

Features trouble alarm and diagnostic units to allow easy maintenance.

Environmentally friendly design.Nontoxic conveyor belt to carry preforms.

The machine with safety ratio, no harm to the human, avoid the danger of taking out bottles by hand, reduce the loss of accident, improve the efficiency.High speed high efficiency: the new model machine equals to 6 semi-automatic.Adopts heating by infrared tubes, can heat thoroughly and evenly, the draft cooling system can guarantee the perform heating and
container mouth stable cooling. PLC control the temperately segmently, heating tunnel is designed reasonably, can turn-over, can adjust by front and back,up and down. The perform heating center distance is small, with fast heating speed, can save 40% comparing the normal heating system.

MAIN TECHNICAL STANDARDS

model	unit	NC-4000
theoretical output	pcs/hr	4000-4500
container volume	L	0.5-2
preform inner diameter	mm	38
max bottle diameter	mm	110
max bottle height	mm	365
cavity	PC	4
main machine size	M	322.2
machine weight	T	4
max heating power	KW	55
installation power	KW	65

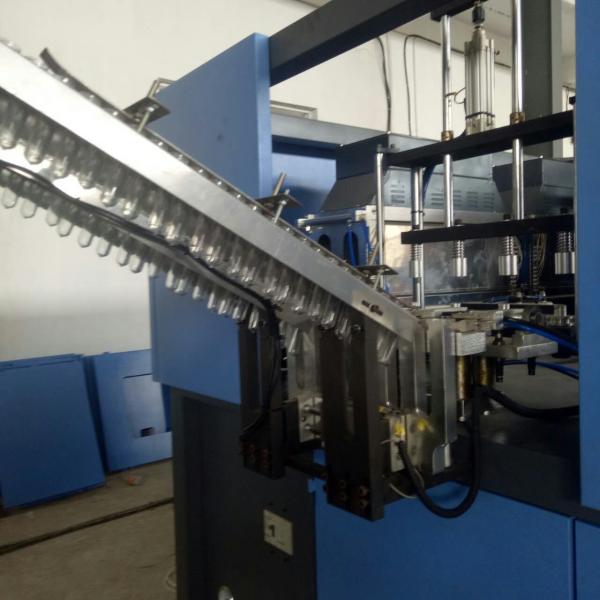

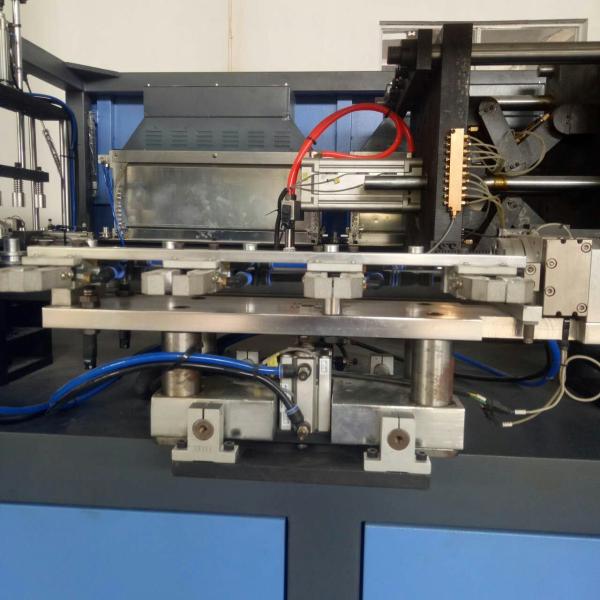

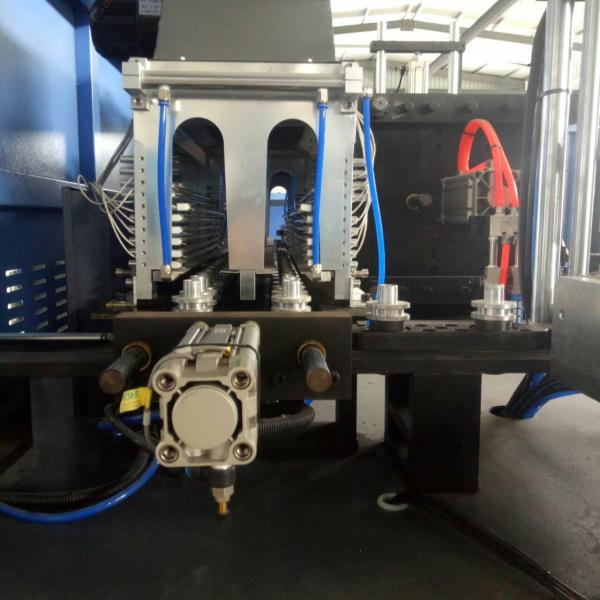

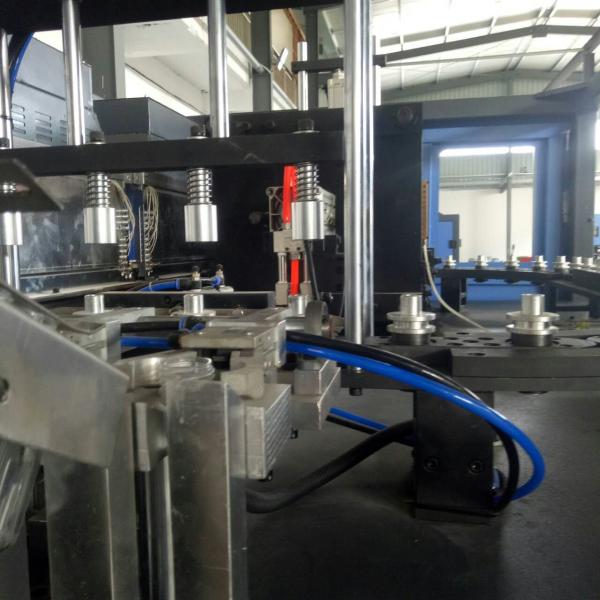

Details Images

Full automatic 4 cavity bottle blowing machine 500ml to 2 liter
