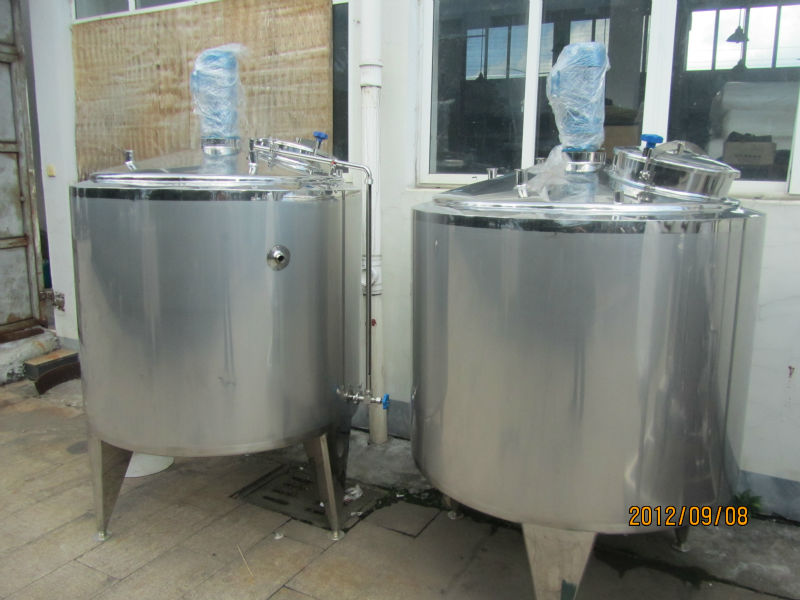

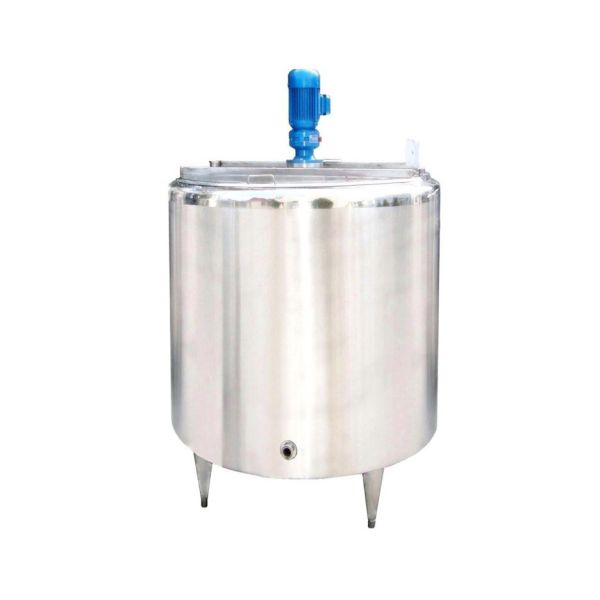

Cheese Fermentation Tank
Fermentation tank is the equipment for mechanical blending ad fermentation of materials. The equipment adopts internal recycling mode ad blending paddle to distribute and break up bubbles. Therefore, high speed of oxygen solution and good quality of blending are achieved. Tank body is made of SUS304 or 316L imported stainless steel, and automatic sprayi9ng and cleaning nozzle in the tank to ensure producing procedure comply with GMP requirements.
It can be used as all kinds of rearrangement tank, material mixing tank in dairy industry.
Technical parameters
| Volume | 300L | 400L | 500L | 600L | 800L | 1000L | 1500L | 2000L | 3000L |
| Body diameter(mm) | Φ800 | Φ800 | Φ900 | Φ1000 | Φ1000 | Φ1000 | Φ1200 | Φ1300 | Φ1600 |
| Body height(mm) | 600 | 800 | 800 | 800 | 1000 | 1220 | 1220 | 1500 | 1500 |
| Motor power(kw) | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.75 | 1.5 | 2.2 | 3 |
| Stirring speed(rpm) | 36r/min |
| Working pressure | ≤0.09Mpa |
| Working temperature | <100°C |
| Accessories | Thermometer,safety valve,pressure gauge |
Notes
1. The nominal capacity and size in the chart is standard configuration. Any specific requirements, please point out.
2. The jacket working pressure≤ 0.09Mpa also can be made according to customers’ requirements.
3. The process parameters that need provided when choosing the cold and hot tank: the nature of material, working pressure, temperature, specific requirements, etc.
Technical requirements of Urn
1. File support: the structural size drawing of the device (PDF) and instructions are available.
2. Required by operated function, the following criteria are adopted to design, manufacture and test
A. << Standards for quality control of pharmaceutical production (Revised 1998)>> terms of Chapter IV 31-37;
B. << The Steel Pressure Vessel (GB150-1998)>>;
C. << The Steel Welding Normal Pressure Vessel (JB/T 4735-1997)>>;
D. << Food Machinery Safety and Heath (GB 16798-1997)>>.
Our company has rich experience to help customers to establish the different production lines for different use, for example. we can arrange technical staff to help customer set up whole production line for mineral water, pure water,cola, milk, juice and vinegar,oil, we are profession for making it. If anyone who is interested in such field wants to buy the whole equipments and machines, pls contact us freely.
We warmly welcome customer to visit our factory at any time,you will see the machine working and running conditon in our factory!
