Tunnel Pasteurizer Water Bath Sterilizer for Juice Processing Voltage 220/380/440v

Processing : Sterilizer

Applicable Industries : Manufacturing Plant, Food & Beverage Factory, Farms

Showroom Location : Russia, Chile, South Africa

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : 100% High Quality

Warranty of core components : 1 Year

Core Components : Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Condition : New

Place of Origin : Shanghai, China

Brand Name : NC

Model Number : PUT-1

Processing Types : Juice

Voltage : 220/380/440v, 220V/380V

Power : 22kw

Weight : 1460 KG

Dimension(L*W*H) : 2600*2200*2500mm

Warranty : 1 Year

After-sales Service Provided : Engineers available to service machinery overseas

Application : Beverage Production

Keyword : Water Sterilization Equipment

Sterilizing Speed : Customized

Sterilizing Temperature : Customized

Steam Pressure : Customized

Dimension : Customized

Type : Water Bath Pasteurizer

Usage : Packed Fruit Juice/paste/jam Sterilizer

Price : $21,000.00/sets 1-1 sets

MOQ : 1 set

Contact Now

Product Overview

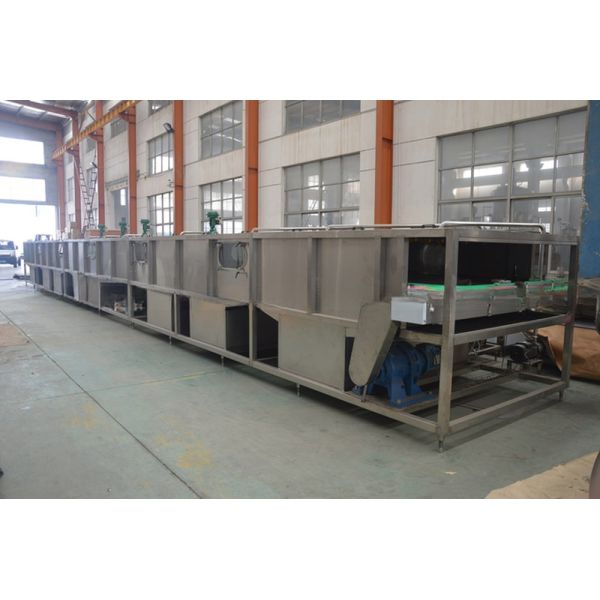

TUNNEL PASTEURIZER WATER BATH STERILIZER FOR SALE

The Continuous Water Soaking Sterilizer is newly designed on the basis of Japanese light industry technology. It is specially applied for second time sterilization of dairy, beverage and jelly products. All direct contact of the product is made of SUS304 stainless steel, and the large chain board and chain wheel are also made of the same stainless steel material. It has the functions of anti-acid, anti-alkali, anti-corrosion. The water tank is heated by steam, and the steam volume is automatically controlled by steam solenoid valve. The hot water can be completely used. The whole machine has a simple design, fine manufacturing, stable operation and beautiful appearance.

Tunnel Pasteurizer Water Bath Sterilizer for Juice Processing Voltage 220/380/440v

PRODUCT SPECIFICATIONS

Production capacity	1000-5000 L/h
Sterilizing temperature	< 98 º C (can be decided by customer)
Sterilizing time	10-35 min (adjustable speed)
Cooling temperature	20 º C
Cooling time	10-25 min (adjustable speed)
Steam pressure	0.4 Mpa
Link belt speed	0.17 -10 m/min (adjustable)
Centrifuge blower fan	3 kW

PRODUCT CONFIGURATION

WATER BATH AND TYPE

SS CHAIN ENSURE GOOD QUALITY

WITH RACK FOR CONVENIENT TRANSPORT

Tunnel Pasteurizer Water Bath Sterilizer for Juice Processing Voltage 220/380/440v Images
