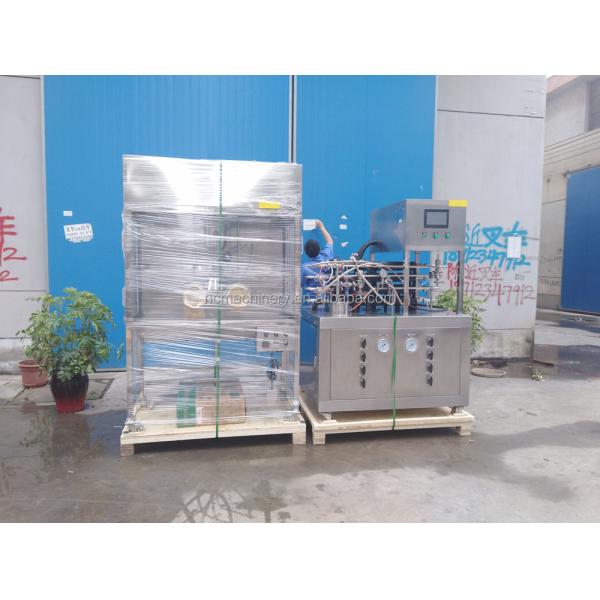

20 LPH UHT Yogurt Lab Sterilizing Line with Cooling to 50 C and Adjustable Flow Rates

Processing : Sterilizer

Applicable Industries : Manufacturing Plant, Food & Beverage Factory, Farms, Food & Beverage Shops

Showroom Location : India, Morocco, Kenya

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Factory Direct Sale

Warranty of core components : 1 Year

Core Components : Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Condition : New

Place of Origin : Shanghai, China

Brand Name : NC

Model Number : LP

Processing Types : Milk

Voltage : 220V/380V

Power : 7.5 Kw

Weight : 600 KG

Dimension(L*W*H) : 1800*800*1200mm

Warranty : 1 Year

After-sales Service Provided : Engineers available to service machinery overseas

Frequency : 50 or 60 Hz

Capacity : 20~25L/h

Holding Tube : 3s,10s,15s (Customized)

Flow Rates Stated : Heating to 142 ℃, Cooling to 50 ℃

Processing Material : Milk,Beverage

Name : Lab Tubular UHT Sterilizer

Product System Pressures : 8 bar

Temperature Precision : ± 1℃

Polish : Mirror Polished

Price : $12,900.00/sets 1-1 sets

MOQ : 1 set

Contact Now

Product Overview

20 LPH FLASH STERILIZING MACHINE UHT YOGURT LAB STERILIZING LINE

1.Machine Introduction of Pasteurizer Prices :
This Lab Mini UHT Milk Pasteurizer Prices is manufactured exclusively with advanced design & technologies to meet requirements from universities, institutes, and dairy industry for simulating industrial manufacture and research in laboratory. Rated capacity can be from 3L/h to 150L/h, completely duplicate the industrial production, which is adaptive to wide ranges of viscidity, and be same with preparation of fibers and granules, precisely mimic prepare, homogeniser, aging, pasteurism, fast sterilization under ultra-temperature temperature and aseptic filling. The machine workstation system is integrated with the CIP function online,which can be configured optionally a homogeniser and a aseptic filling cabinet on your needs.
2.Machine Features of Pasteurizer Prices:
1). Rated capacity 3L/H~150L/H, lowest sample 3L~5L, handled easily and minimum sample required.
3). mini uht sterilizer workstation with selected system components ,all major
4). components are housed within a stainless steel cabinet, as standard two electrically
5). heated hot water recirculators,no steam required
6). PLC controller, LCD touch panel control fascia with flow path of system.
7). Two modes of run: Automatic-mode, and Eye-monitored mode for the purpose of easily controlling experimental process .
8). As standard a progressive screw pump(made in Germany) with CIP is used to avoid secondary pollution.
9). mini uht sterilizer is mobile, and can be positioned in a wet or dry area.
10). Non-material warning functions.
11). Computer interface with real time temperature recording ,the trial data can be used for the paper directly with excel file.
3.Machine Applications of Pasteurizer Prices :
This mini UHT Milk Pasteurizer Prices is applied for various technology processing:such as homogenizing,pasteurization,high temperature sterilization and ultra high temperature sterilization and so on.It's used for various beverages and similar heat sensitivity liquids,such as milk,juice,condiments,additives,tea drinks and beer etc.
20 LPH UHT Yogurt Lab Sterilizing Line with Cooling to 50 C and Adjustable Flow Rates
20 LPH UHT Yogurt Lab Sterilizing Line with Cooling to 50 C and Adjustable Flow Rates
20 LPH UHT Yogurt Lab Sterilizing Line with Cooling to 50 C and Adjustable Flow Rates
PRODUCT SPECIFICATIONS
Power
13KW 380V 50/60Hz
Rated Capacity
20-25L/H
Max. Heating Temperature
150°c
Cooling Temperature
Normal Temperature OR 5°c(Optional)
Heating Unit
Heat Hot Water Recirculators
Temperature Control
PID Control
Heating Precision
±0.5°c
Sterilizing Time
3s 5s 10s 30s 300s(optional)
System Pressure
10Bar
Sterilize
SIP An Option For Aseptic Sampling
Clean
CIP( 400LPH)
USB connector
Yes
Body material
SUS304 Stainless Steel
Material Touch Part
SUS316L
Filling System
Sterile Cabinet(Optional)
Filtering Membrane
HEPA (Filter Efficiency 99.99%)
Jacketed Filling Device
10L(5L)
Filling Valve
Air Operated Filling Device
Ozone Generating System
Optional
Display
7-Inch LCD Display
PRODUCT CONFIGURATION
20 LPH UHT Yogurt Lab Sterilizing Line with Cooling to 50 C and Adjustable Flow Rates
STAINLESS STEEL COUPLING WITHOUT DEAD CORNER
20 LPH UHT Yogurt Lab Sterilizing Line with Cooling to 50 C and Adjustable Flow Rates
CAN CONNECT WITH ASEPTIC FILLING MACHINE
20 LPH UHT Yogurt Lab Sterilizing Line with Cooling to 50 C and Adjustable Flow Rates
ASEPTIC FILLING TECHNOLOGY
