23KW Overall Power Fresh Juice Beverage Aseptic Gable Top Carton Filling Machine

Machinery Capacity : 2000BPH

Application : Food, Beverage

Packaging Type : Stand-up Pouch, Bags, Pouch

Packaging Material : Plastic, Other

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 380V/220V

Place of Origin : Shanghai, China

Brand Name : NC

Dimension(L*W*H) : 2200X2100X2200MM

Weight : 2500 KG

Warranty : 1 Year

Key Selling Points : High-accuracy

Filling Material : Milk, Juice

Filling Accuracy : 100%

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Core Components : Motor, PLC, Engine

After-sales Service Provided : Engineers available to service machinery overseas

Volume : 200-2000ml

Output : 800-1200 cartons/hour

Packing material : Aluminium Foil Carton

material : or cardboard carton

Cold Filling Temperature : 2-50℃

Hot Filling Temperature : 80-92℃

Capping function 1 : With capping

Capping function 2 : without capping

Overall power : 23KW

Marketing Type : HOT SALE 2022

Type : Filling Machine

Showroom Location : Peru, Bangladesh, South Africa, Kazakhstan

Condition : New

Warranty of core components : 1 Year

Applicable Industries : Manufacturing Plant, Food & Beverage Factory, Farms, Milk Processing Plant, Juice Processing Plant

Packaging Details : Standard export wooden case

Port : Shanghai

Supply Ability : 50 Set/Sets per Month

Price : $45,000.00/sets 1-1 sets

MOQ : 1 set

Contact Now

Fresh Juice Beverage Aseptic Gable Top Carton Filling Machine

23KW Overall Power Fresh Juice Beverage Aseptic Gable Top Carton Filling Machine

Application

The Gable Top Carton Filling Machine fits for liquid products such as fruit juice beverages, fruit vinegar beverages, cereal beverages, tea beverages, cream, pure milk, soy milk, fermented yogurt, milk beverages, condiments, wines, chemicals and other liquid products.

Packing Type: Cartons

Packing Material:Paper

Technical parameter:

Capacity	200--1000ml / 1000ml-2000ml (can be filled by one machine)
Output	800-1200 cartons/hour
Packing material	cardboard carton / aluminium foil carton(Carton bottom size 5757mm, 7070mm, 95*95mm, one size for one machine)
Filling Temperature	cold filling: 2-50℃ / hot filling 80-92℃
Capping function	With capping / without capping (Optional)
Overall power	23KW (three phases of electricity)

23KW Overall Power Fresh Juice Beverage Aseptic Gable Top Carton Filling Machine

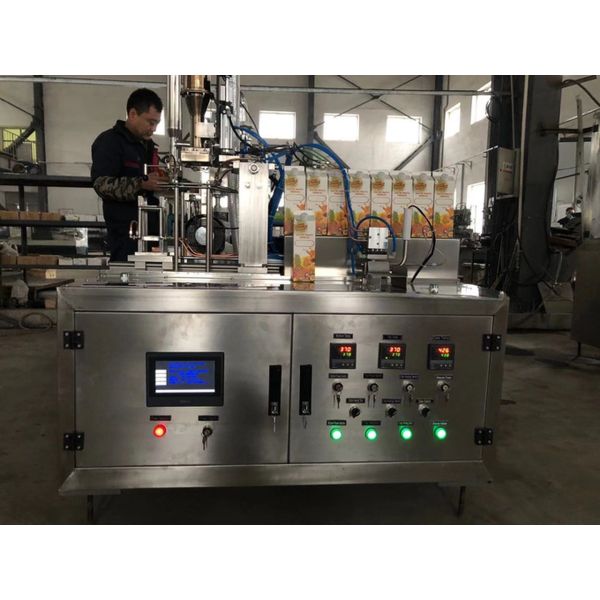

23KW Overall Power Fresh Juice Beverage Aseptic Gable Top Carton Filling Machine Images
