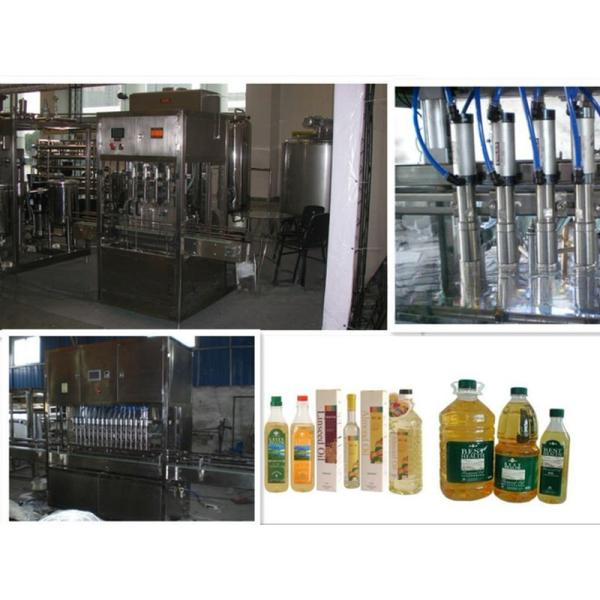

The automatic piston type bottle filling machine can be used in the vast types of liquid filling, including high viscosity liquids,
such as: pharmaceuticals, chemicals, oils, cosmetics, food and other non-granulated liquid, with high precision.
The Butter Bottle Filling Machine
Technical Parameter:
Capacity: 1200-2000 bottle per hour (based on 1000ml bottle)
Suitable to 200-2000ml plastic bottle
Filling head: 5heads
Power: 0.75KW
Machine Size: 2200×800×1800mm
Brief description:

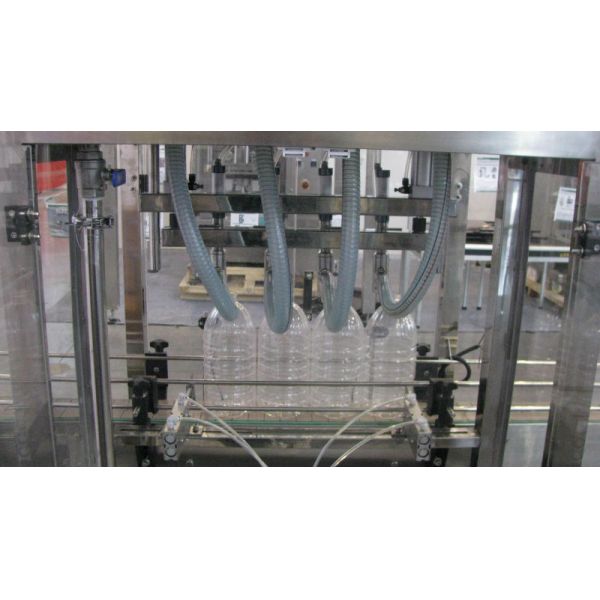

This system adopts straight-line stepless speed regulation and digital control for filling volume. With 5 head 304 stainless steel filling heads, high precision filling, no leakage & no bubble during the filling process
Various filling spout for leak-proof and suck-back system protects job site & containers from pollution.
Principles and characteristics:
*human-machine interface, directly set filling quantity
*PLC control, frequency converter to adjust the filling speed, line filling
*the volumetric flowmeter, high accuracy
*mechanical sealing anti-dripping
*two filling speeds prevent excessive
*speed regulation by frequency variation
*2.5meters conveyor belt
*automatic reaction capping machine
| Filling capacity: | 1000ML |
| Number of filling valves: | 4 |
| Filling speed: | 1000(1L)B/H |
| Power: | 220-380V/50HZ(2.4KW) |
| Gas source pressure: | 0.4-0.8(Mpa) |
| External dimensions: | 1200mm×1000mm×2300mm |
Our company has rich experience to help customers to establish the different production lines for different use, for example. we can arrange technical staff to help customer set up whole production line for mineral water, pure water,coca-cola, milk, juice and vinegar,oil, we are profession for making it. If anyone who is interested in such field wants to buy the whole equipments and machines, pls contact us freely.
We warmly welcome customer to visit our factory at any time,you will see the machine working and running
conditon in our factory!
