Max. Air Consumption 0.5m3/min Ice Cream Yogurt Pudding Cup Filling Sealing Machine

Name: Max Air Consumption 05m3min Ice Cream Yogurt Pudding Cup Filling Sealing Machine
Brand: NC, NC
Price: 12 USD

Wholesale Max. Air Consumption 0.5m3/min Ice Cream Yogurt Pudding Cup Filling Sealing Machine from china suppliers

Machinery Capacity : 4000BPH, 8000BPH, 12000BPH, 6000BPH, 2000BPH

Application : Food, Beverage

Packaging Type : Cup

Packaging Material : Plastic, Other

Automatic Grade : Automatic

Driven Type : Pneumatic

Voltage : 220V/380V/415V/440V/480V

Place of Origin : Shanghai, China

Brand Name : NC, NC

Dimension(L*W*H) : 3000*600*1500mm

Weight : 850 KG

Warranty : 1 Year

Key Selling Points : Long Service Life

Filling Material : Milk, Water, Juice

Filling Accuracy : 100%

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Core Components : Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine

After-sales Service Provided : Engineers available to service machinery overseas

Product Name : Cup Filling Sealing Machine

Filling Range : 30-300ml

Air Pressure : 0.8Mpa

Power : 5KW

Max. Air Consumption : 0.5m3/min

Function : Ice cream filling and sealing

Packing Speed : 4000 cups

Location : Shanghai

Type : Filling Machine

Condition : New

Applicable Industries : Manufacturing Plant, Food & Beverage Factory, Farms

Showroom Location : Pakistan, Argentina, Colombia

Warranty of core components : 1 Year

Packaging Details : Standard export wooden case

Port : Shanghai

Supply Ability : 20 Set/Sets per Month

Price : $12,500.00/sets 1-1 sets

MOQ : 1 set

Contact Now

Ice Cream Yogurt Pudding Cup Filling Sealing Machine

1 BRIEF INTRODCUTION

Suitable for packing yogurt, ice cream, milk, ketchup, juice, water and so on.

2 MAIN FUNCTION

1. automatic cup dropping (cups should be stacked, but can't stick together)

2. automatic filling yogurt

3. automatic pre-cut foil suck

4. automatic sealing

5. auto cup exiting

3 ELECTRIC PARTS

1. WeinView PLC

2. domestic reducer

3. domestic splitter

4. domestic cylinder

5. S.S. chain

6. S.S. heating pipe

7. acid-resisting aluminum mould board

CD-40	Automatic Cup Filling and Sealing Machine
Output	3600-4000 cups/hour
Mold	4 cups loading holes in 1 line
Filling volume	According to customer cups
Voltage	380V/50HZ
Air consumption	0.8m3/min
Cup Diameter	95mm
Sealing film width	355mm
Power	5kw
Sealing temperature	180-240C
Dimension	3000×800×1600mm
Packing dimension	3100mm900mm1700mm
Weight	950kgs

Max. Air Consumption 0.5m3/min Ice Cream Yogurt Pudding Cup Filling Sealing Machine

Our company has rich experience to help customers to establish the different production lines for different use, for example. we can arrange technical staff to help customer set up whole production line for mineral water, pure water,cola, milk, juice and vinegar,oil, we are profession for making it. If anyone who is interested in such field wants to buy the whole equipments and machines, pls contact us freely.

We warmly welcome customer to visit our factory at any time,you will see the machine working and running conditon in our factory!

Responsible Man(General Manager):Jason

Cel.Phone:0086-15221595986

Tel.Phone:0086-21-37575536

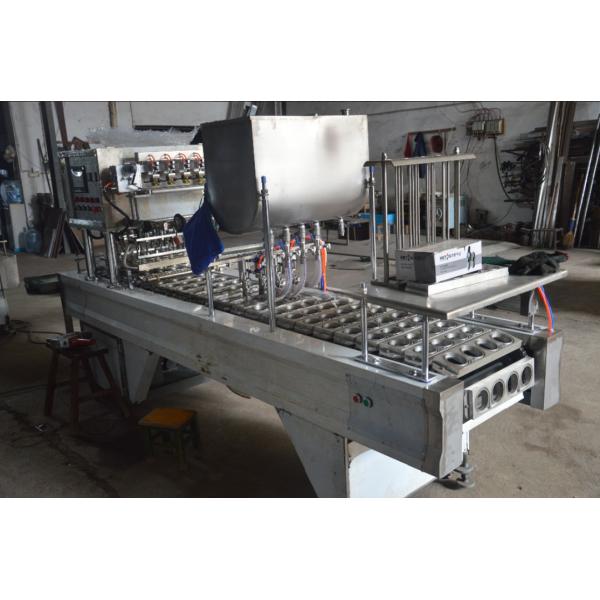

Max. Air Consumption 0.5m3/min Ice Cream Yogurt Pudding Cup Filling Sealing Machine Images
