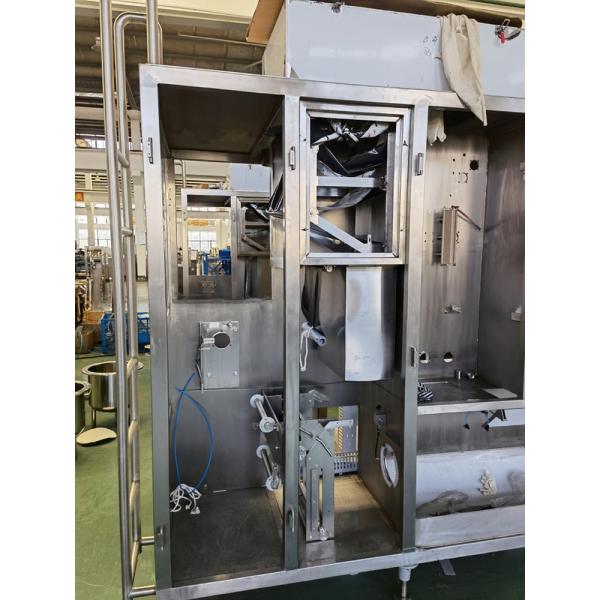

Fully-automatic aseptic liquid packing machine(Hereinafter calledUHT milk packing machine)is a special equipment to pack the liquid which in the aseptic space,and was processed UHT(ultra high temperature)treatment. This kind of packing machine is widely used for the soft packing of milk,soy milk,juice,mineral water, soy sauce, vinegar,etc.
1,Processing way. The packing machine will do as following during packing the liquid,open the film rolls,automatically sterilization,bag forming,quantitive filling,automatically counting, date printing,sealing,cutting etc. All the process completed in a ultra cleaning and enclosed space,and is control by PLC.
2,Structure. The packing machine is constituted by mainbody ,pneumatic mechanism,rack,film bag sterilization,thefilm bag forming ,quantity filling ,date printing,sealing,cutting,CIP backwash PLC touch screensystem etc.
Filling control and cleaning system(Connected with the sterilizer directly)
1. Pneumatic liquid level control valve(Germany Burkert company)
2. Aseptic type liquid level gauge(Germany E+H company)
3. Filling volume control system(Our factory patented products)
H2O2 sterilizing system
1.H2O2 heating device(Shanghai)
2.Packing film sterilizing H2O2 recycling system(Made by our factory)
3.H2O2 spraying sterilizing system(Made by America)
4.H2O2 automatic inspection system(Our factory patented products)
5.Automatic bath vessel water level control system(Our factory patented products)
Aseptic air system
1.Aseptic air filter system(virus standard,Made by our factory)
2.Aseptic air heating device(Our factory patented products)
3.Aseptic air inspection device(Our factory patented products)
4.Wind charging device(Made by our factory
UV sterilizer
High efficiency UV lamb sterilizing inside the aseptic area
Ozone generating system(Made by our factory)
1.Ozone generator: can restart frequently,the shelf life is more than 15 years
2.Ozone sterilizing system: Imported from America,sterilize inside the aseptic area,can ensure the aseptic area more safe and reliable
Basic parameters
| Suitable packing material | (Melting point 160℃)any heat-sealable plastic film roll |
| Width of packing material | 320mm±1.5mm(240mm±1.5mm). |
| Volume range | 100-250 300-1000ml/b(adjustable); |
| Packing accuracy | ±1.5% |
| Packing speed | 6000 bags per hour |
| Basic parameters of packing machine | Pressure | 220V |
| Rated frequency | 50Hz |
| power | 24KW; |
| weight | 2500KG |
| Size(mm) | 4500×1280×3250 |
| 300-1000ml/b 1set | |
