1250kg Semi Automatic 6L PET Bottle Blow Molding Machine for Water Packaging Industry

Plastic Processed : PET

Max.Bottle Height(mm) : 580 mm

Neck Diameter(mm) : 55 mm

Max.Bottle Diameter(mm) : 380 mm

Bottle Volume(ml) : 20000 ml

Condition : New

Application : Bottle

Place of Origin : Shanghai, China

Brand Name : NC

Year : 2020

Voltage : 220V/380V/415V/440V/480V

Dimension(L*W*H) : 1750*950*1860mm

Hollow part volume : 2150*730*1700mm 2650*680*1580mm

High Pressure Valve Brand : AirTac

Clamping Force (kN) : 50

Rotary Cylinder Brand : AirTac

PLC Brand : MITSUBISHI

Power (kW) : 18

Weight (KG) : 1650 KG

Automation : Semi-automatic

Warranty : Lifetime Warranty, Lifetime Warranty, Lifetime Warranty

Key Selling Points : Easy to Operate

Showroom Location : Algeria, UAE, Uzbekistan

Applicable Industries : Manufacturing Plant

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Bearing, Motor, PLC, Pressure vessel, Gearbox

Automatic : No

After-sales Service Provided : Engineers available to service machinery overseas

Power : 15KW

Weight : 1250kg

Local Service Location : Chile, Kyrgyzstan, Argentina

After Warranty Service : Spare parts, Field maintenance and repair service, Video technical support, Online support

Production Capacity (BPH) : 120

Certification : CE

Marketing Type : HOT SALE

Blow Moulding Type : Stretch Blow Moulding

Packaging Details : Standard wooden case

Port : Shanghai

Supply Ability : 200 Set/Sets per Month

Price : $3,500.00/sets 1-1 sets

MOQ : 1 set

Contact Now

3 to 5 gallon pet bottle Blowing molding machine, 5L 10L 15L 20L 5 Gallon water bottle container blow
Product Description
1. Using the new clamping system with double crank four tie-bars,the cross balanced fixed glide.
2. The seal,the stretch use the parallel bars union and combined design,which is advantageous to the product formation.
3. The advanced air course design,the single-channel or single-channel air admission;low pressure for clamping,sealing and stretching;the high pressre for blowing the bottle.
4. PLC control system,the operaton is easy.
5. With infrared heating,controllable constant pressure control,frequency conversion,thus achieves blows the perfect bottle.

NC120 air supply flow chart

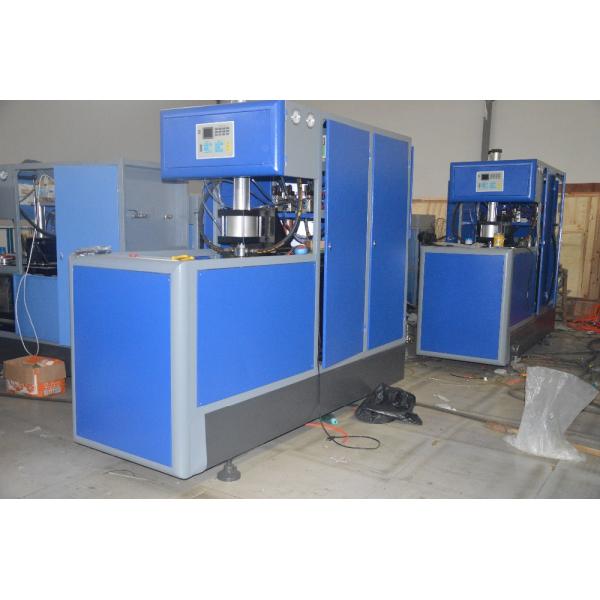

1250kg Semi Automatic 6L PET Bottle Blow Molding Machine for Water Packaging Industry

Item	Name	Brand
Pneumatic components	Cylinder	YONGCHENG
Pneumatic components	Valve	YONGCHENG
Electrical components	Main computer	DELTA
	Human machine interface (HMI)	DELTA
	Circuit breaker	LS
	Photoelectric switch	AUTONICS
Remark	All the components are selected with Internationally applied high-tech products.

Ⅲ. Description:

Technology Parameters:

Type	NC-100
Output	According to bottle type	100-120PCS/H
Product species	Bottle diameter	150mm-300mm
	bottle height	250mm-550mm
	Bottle mouth diameter	15mm-100mm
Mold	cavity	1 cavity
	mould thickness	200~450mm
	Effective area of mold	600*600mm
Main power	Power	127v monophase 50/60HZ
Main power	install power/actual power	30kw/10kw
Air source
	High pressure air compressor	1.2m3/min 3.0MPa
	Cold dry machine	2.0m3/min 3.0MPa 1set
cooling water	Cooling water quantity	15L/min
Main machine size	Length width height/weight	21507301700mm/950kg
Oven size	Length width height /weight	26506801580mm/750kg

Machine components

Item	Name of the main spare parts	Brand Name
1	Closing cylinder	Yongcheng
2	Stretching/sliding cylinder	Yongcheng
3	Sealing cylinder	Yongcheng
4	High Pressure Blowing cylinder	Yongcheng
5	Closing magnetic valve	Yongcheng
6	Stretching magnetic valve	Yongcheng
7	High pressure Blowing magnetic valve	Delta Taiwan
8	Pre-blow magnetic valve	Yongcheng

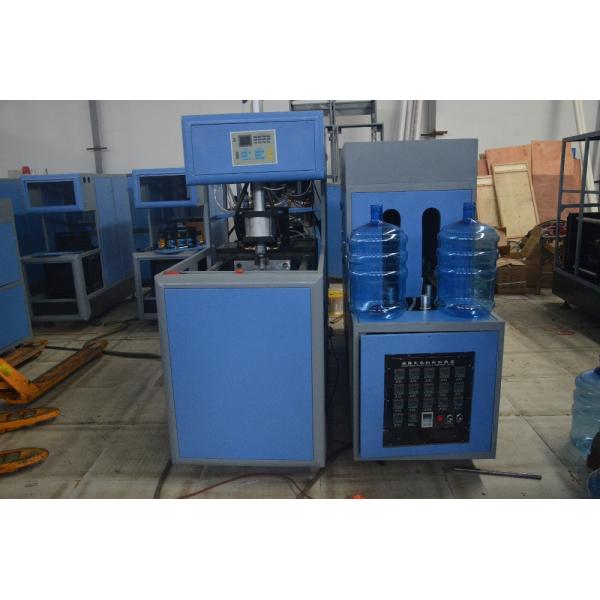

1250kg Semi Automatic 6L PET Bottle Blow Molding Machine for Water Packaging Industry

1250kg Semi Automatic 6L PET Bottle Blow Molding Machine for Water Packaging Industry Images
