Polish Mirror Polished Semi Automatic 20 Liter Jar Manufacturing Machine for Superior

Plastic Processed : PET

Max.Bottle Height(mm) : 650 mm

Neck Diameter(mm) : 55 mm

Max.Bottle Diameter(mm) : 380 mm

Bottle Volume(ml) : 20000 ml

Condition : New, Brand New

Application : Bottle

Place of Origin : Shanghai, China, Shanghai,China (Main Land)

Brand Name : NC

Year : 2021

Voltage : 110v/220v/380v/415v/480v 50hz/60hz

Dimension(L*W*H) : 2150*730*1700mm 2650*680*1580mm

Hollow part volume : 20L

High Pressure Valve Brand : AirTac

Clamping Force (kN) : 50

Rotary Cylinder Brand : AirTac

PLC Brand : Siemens

Power (kW) : 25

Weight (KG) : 1650 KG

Automation : Semi-automatic

Warranty : 1 Year

Key Selling Points : Easy to Operate

Showroom Location : India

Applicable Industries : Manufacturing Plant

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Bearing, Motor, PLC, Pressure vessel, Engine, Gearbox

Weight : 1650kgs

After-sales Service Provided : Engineers available to service machinery overseas

Model Number : NC100A(20L)

Power(W) : 15KW

Automatic : Yes

Production Capacity (BPH) : 120 BPH

Polish : Mirror Polished

Product Name : Bottle Blowing Machine

Packaging Details : Standard wooden case

Port : Shanghai

Supply Ability : 300 Set/Sets per Month

Price : $5,300.00/sets 1-4 sets

MOQ : 1 set

Contact Now

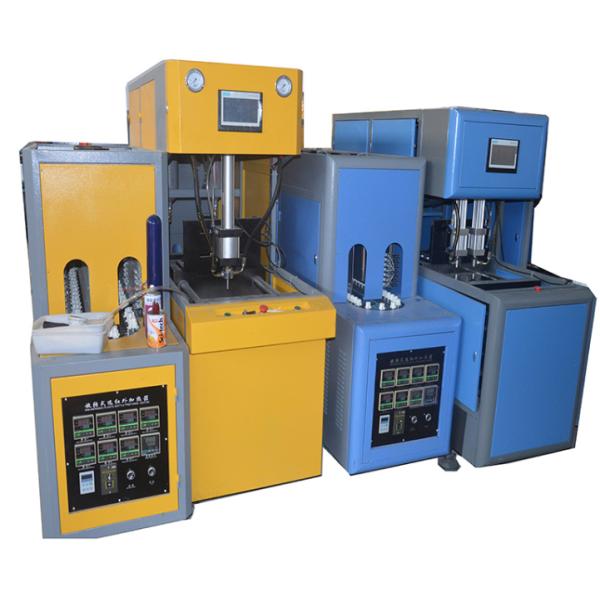

Polish Mirror Polished Semi Automatic 20 Liter Jar Manufacturing Machine for Superior

3 to 5 gallon pet bottle Blowing molding machine, 5L 10L 15L 20L 5 Gallon water bottle container blow
Product Description
1. Using the new clamping system with double crank four tie-bars,the cross balanced fixed glide.
2. The seal,the stretch use the parallel bars union and combined design,which is advantageous to the product formation.
3. The advanced air course design,the single-channel or single-channel air admission;low pressure for clamping,sealing and stretching;the high pressre for blowing the bottle.
4. PLC control system,the operaton is easy.
5. With infrared heating,controllable constant pressure control,frequency conversion,thus achieves blows the perfect bottle.

Polish Mirror Polished Semi Automatic 20 Liter Jar Manufacturing Machine for Superior

Item	Name	Brand
Pneumatic components	Cylinder	YONGCHENG
Pneumatic components	Valve	YONGCHENG
Electrical components	Main computer	DELTA
	Human machine interface (HMI)	DELTA
	Circuit breaker	LS
	Photoelectric switch	AUTONICS
Remark	All the components are selected with Internationally applied high-tech products.

Ⅲ. Description:

Technology Parameters:

Type	NC-100
Output	According to bottle type	100-120PCS/H
Product species	Bottle diameter	150mm-300mm
	bottle height	250mm-550mm
	Bottle mouth diameter	15mm-100mm
Mold	cavity	1 cavity
	mould thickness	200~450mm
	Effective area of mold	600*600mm
Main power	Power	127v monophase 50/60HZ
Main power	install power/actual power	30kw/10kw
Air source
	High pressure air compressor	1.2m3/min 3.0MPa
	Cold dry machine	2.0m3/min 3.0MPa 1set
cooling water	Cooling water quantity	15L/min
Main machine size	Length width height/weight	21507301700mm/950kg
Oven size	Length width height /weight	26506801580mm/750kg

Machine components

Item	Name of the main spare parts	Brand Name
1	Closing cylinder	Yongcheng
2	Stretching/sliding cylinder	Yongcheng
3	Sealing cylinder	Yongcheng
4	High Pressure Blowing cylinder	Yongcheng
5	Closing magnetic valve	Yongcheng
6	Stretching magnetic valve	Yongcheng
7	High pressure Blowing magnetic valve	Delta Taiwan
8	Pre-blow magnetic valve	Yongcheng
9	Voltage regulator	CHINA
10	Temperature controller	CHINA
11	Computer controller	Delta Taiwan
12	Infrared lamp	CHINA
13	Motor	CHINA-YS
14	Relay	CHINA-delex
15	Fan	CHINA
16	Circuit Breaker	CHINA-delex

Polish Mirror Polished Semi Automatic 20 Liter Jar Manufacturing Machine for Superior

Our company has rich experience to help customers to establish the different production lines for different use, for example. we can arrange technical staff to help customer set up whole production line for mineral water, pure water,cola, milk, juice and vinegar,oil, we are profession for making it. If anyone who is interested in such field wants to buy the whole equipments and machines, pls contact us freely.

We warmly welcome customer to visit our factory at any time,you will see the machine working and running

conditon in our factory!

Responsible Man(General Manager):Jason

Cel.Phone:0086-15221595986

Tel.Phone:0086-21-37575536
