Packaging Bottles with Full Automatic Bottle Shrink Sleeve Labeling Machine

Application : Beverage, Food

Packaging Type : Bottles

Packaging Material : Plastic

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V/380V/415V

Place of Origin : Shanghai, China

Brand Name : NC

Dimension(L*W*H) : 2200*1450*2080

Weight : 750 KG

Warranty : 1 Year

Key Selling Points : Easy to Operate

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Core Components : PLC, Gear, Motor, Bearing

After-sales Service Provided : Engineers available to service machinery overseas

Type : LABELING MACHINE

Applicable Industries : Manufacturing Plant, Food & Beverage Factory, Farms, Food & Beverage Shops

Showroom Location : Canada, India, Thailand, Kenya

Condition : New

Warranty of core components : 1 Year

Machinery Capacity : 9000BPH

Packaging Details : Standard wooden case

Port : Shanghai

Supply Ability : 50 Set/Sets per Month

Price : $8,000.00/sets 1-1 sets

MOQ : 1 set

Contact Now

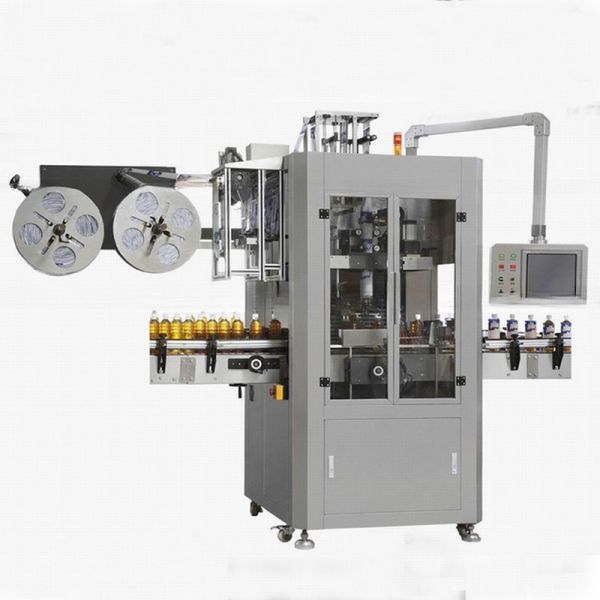

Full Automatic Bottle Shrink Sleeve Labeling Machine

Configuration:

Automatic bottle sleeve labeling machine machine adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer; besides, it adopts the positioning module to ensure the casting

label precise,rapid and stable. It not only has a highly precise position for casting label, but also can withstand the perfect shape of the bottle after shrinkage.

Application:

Full automatic bottle sleeve label machine applies to food & beverage industries as fruit juice, tea,drink, dairy products, pure water, condiments, beer and sports drink etc. Of all kinds of bottles; It suitable

for various kinds of bottle types, for example: round bottle, square bottle, flat bottle, curved bottle and cup-shaped, etc. It not only has a highly precise position for casting label, but also can withstand the

perfect shape of the bottle after shrinkage.

Characteristics:

1. All-cover type stainless steel host machine:the whole machine is waterproof as well as rustproof.

2. Adjustable cutter head:uniquely cyclotron cut-off, double sided cutting edge with a long service life.

3. Single positioning center guide pillar:a more stable for label delivery.

4. Synchronous bottle divider: a more stable transmission for bottle.

5. Bottom set of label brush:a more precision for casting label.

6. Label-controlling electric-eye shelf:unique combination of tail and electric-eye to improve the precision for cutting off the membrane materials.

7. Push-button control cabinet:a more humanized operation. 8. Independent feeding material shelf: the position of the material shelf is optional at will.

Technical parameter:

Input Power

1.5KW

Input Voltage

3, 380/220VAC

Production Efficiency

150 Bottle/ min

Size of Host Machine

L2100mm×W850mm×H2000mm

Applicable Diameter of Bottle Body

28mm-125mm

Applicable length of Label

30mm-250mm

Applicable thickness of Label

0.03mm-0.13mm

Applicable Internal Diameter of Paper Tube

5' -10' Free Adjustment

Packaging Bottles with Full Automatic Bottle Shrink Sleeve Labeling MachinePackaging Bottles with Full Automatic Bottle Shrink Sleeve Labeling MachinePackaging Bottles with Full Automatic Bottle Shrink Sleeve Labeling MachinePackaging Bottles with Full Automatic Bottle Shrink Sleeve Labeling MachinePackaging Bottles with Full Automatic Bottle Shrink Sleeve Labeling Machine

Packaging Bottles with Full Automatic Bottle Shrink Sleeve Labeling Machine

Packaging Bottles with Full Automatic Bottle Shrink Sleeve Labeling Machine

Packaging Bottles with Full Automatic Bottle Shrink Sleeve Labeling MachinePackaging Bottles with Full Automatic Bottle Shrink Sleeve Labeling MachinePackaging Bottles with Full Automatic Bottle Shrink Sleeve Labeling Machine

Packaging Bottles with Full Automatic Bottle Shrink Sleeve Labeling Machine

Packaging Bottles with Full Automatic Bottle Shrink Sleeve Labeling Machine

Packaging Bottles with Full Automatic Bottle Shrink Sleeve Labeling Machine

Our company has rich experience to help customers to establish the different production lines for different use, for example. we can arrange technical staff to help customer set up whole production line for mineral water, pure water,cola, milk, juice and vinegar,oil, we are profession for making it. If anyone who is interested in such field wants to buy the whole equipments and machines, pls contact us freely.

We warmly welcome customer to visit our factory at any time,you will see the machine working and running conditon in our factory!

Responsible Man(General Manager):Jason

Cel.Phone:0086-15221595986

Tel.Phone:0086-21-37575536
